PMT300-SGM-ZTN Air Box

Air Box.png

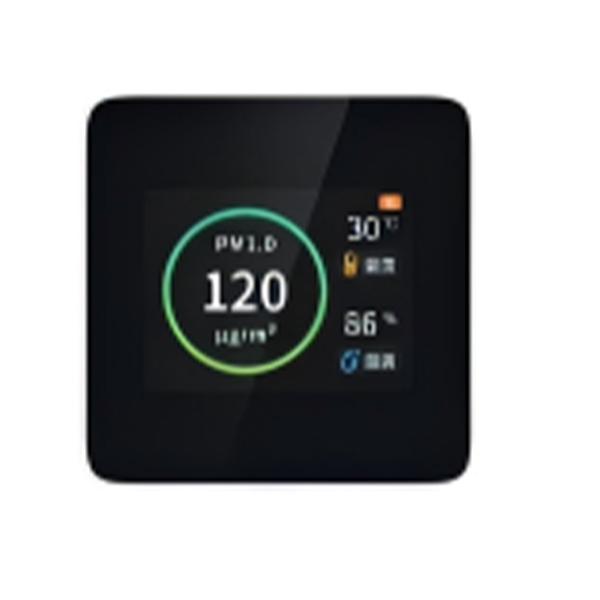

The air box is an air quality detector, a smart device with VOC, formaldehyde, PM2.5, temperature, humidity,C02,illumination, and supports environmental parameter display. This product is not suitable for commercial or industrial environments especially in environments with other corrosive gases and high concentrations of dust.

    Contact us
    product details

    products description

    797M-HL3 (2)
    797M-HL3 (3)78f
    1732604487494
    797M-HL3 (5)213
    797M-HL3 (7)hfw
    797M-HL3 (6)rxi

    Feature

    · Real-time detection of PM2.5, VOC,formaldehyde, temperature, humidity, CO2,illumination and other air quality parameters;
    · LCD display;
    · Zigbee data transmission (24V power supply equipment also supports CAN communication connection)
    · Need to connect with Zigbee gateway

    Technical Data

    Dimension 86*86*53
    Working Temperature： -10℃~+55℃
    Working humidity： 0%~95%RH
    Power： 220V AC
    Communication Method： ZigBee
    Material ：PC shell, glass panel
    Installation ：Wall mount
    Temperature Range:-10℃~+55C
    Accuracy: ±2 C
    Humidity Range:35%~85%
    Accuracy:±5%
    PM2.5 Range: 0~999ug/m³
    Accuracy: ±20%  ，±20ug/m
    CO2 Range:0~5000ppm
    Accuracy:±100ppm
    VOC Output mode:excellent,good,poor
    Formaldehyde Sensor Output mode:excellent,good,poor
    Resolution:≤0.01ppm
    Light Sensor ：The third generation ambient light sensor suppresses the infrared part
