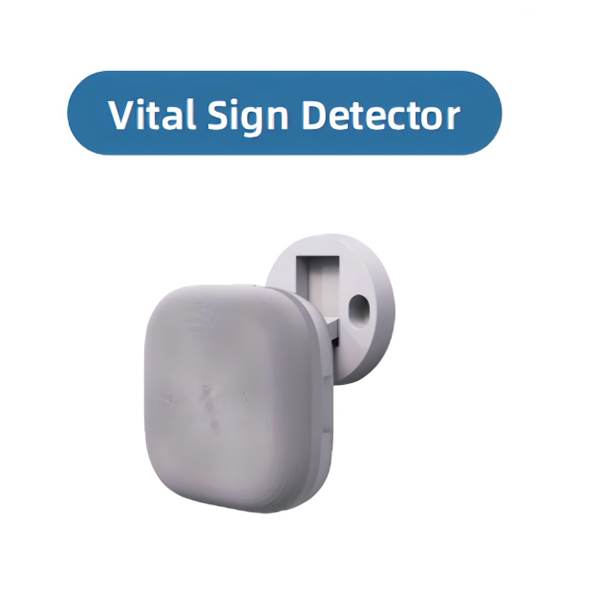

D60S01 Vital Sign Detector


The vital sign monitoring radar is a non-contact, non-wearable, and sensorless respiratory and heart rate monitoring product that monitors people's breathing and heart rate in bed. While they are sleeping, the product can monitor the respiratory waveform, body movement index, respiratory frequency, heart rate index and other data of people in bed, lying in bed, and sleeping in real time, and issue alarm notifications for abnormal situations.

    Contact us
    product details

    products description

    797M-HL3 (2)
    797M-HL3 (3)78f
    1732604487494
    797M-HL3 (5)213
    797M-HL3 (7)hfw
    797M-HL3 (6)rxi

    Feature

    · Real-time monitoring and data output of breathing, heart rate, body movement
    index, etc. of lying/sitting personnel;
    · It can accurately identify heart rates
    between 48 and 120 beats per minute with an error of no more than 5 bpm.

    Technical Data

    Dimension ：87*87*27mm
    Rated Voltage： 5V
    Working Current ：1.2A
    Power Supply Interface： TYPE-C
    Network Method ：Bluetooth, WIFI
    Detection Range： About 0.5~1.5m from the radar
    Sleep Mode： In an unmanned environment, the main control can enter sleep mode
    Shell Material： ABS
    Upgrade Features ：OTA
    Installation Method： Side mounting, centered 1m above the mattress
    Support Functions： Heart rate, breathing rate, breathing waveform, body movement, distance Breathing
    Recognition Range ：0-30bpm
    Breathing recognition accuracy ：≤3bpm (within the detection range, when the human body is stationary or slightly
    moving, the maximum error lasts for 5 minutes)
    Heart rate recognition range： 48-120bpm
    Heart Rate Recognition Accuracy ：≤5bpm (within the detection range, the maximum error for 5 minutes when the human body is stationary or slightly moving)

    Function

    1. Function warning
    1.1 Abnormal vital signs alarm (no breathing or heartbeat alarm)
    1.2 Reminder for not leaving bed for a long time (reminder for not getting up according to daily
    habits)
    1.3 Long-term out-of-bed reminder (night-time out-of-bed reminder)
    1.4 Reminder for changes in lifestyle habits
    (reminder for not going to bed according to daily habits)
    1.5 Long time inactivity reminder
    1.6 Daily sleep statistics report
    1.7 Abnormal breathing reminder and report
    1.8 Abnormal heart rate reminder and report
    2. Alarm linkage ：When abnormal patient vital
    signs are detected, the alarm is triggered, and the
    door lights, nurse terminal, dashboard, and corridor displays are linked to send out alarm messages to
    inform medical staff in time
